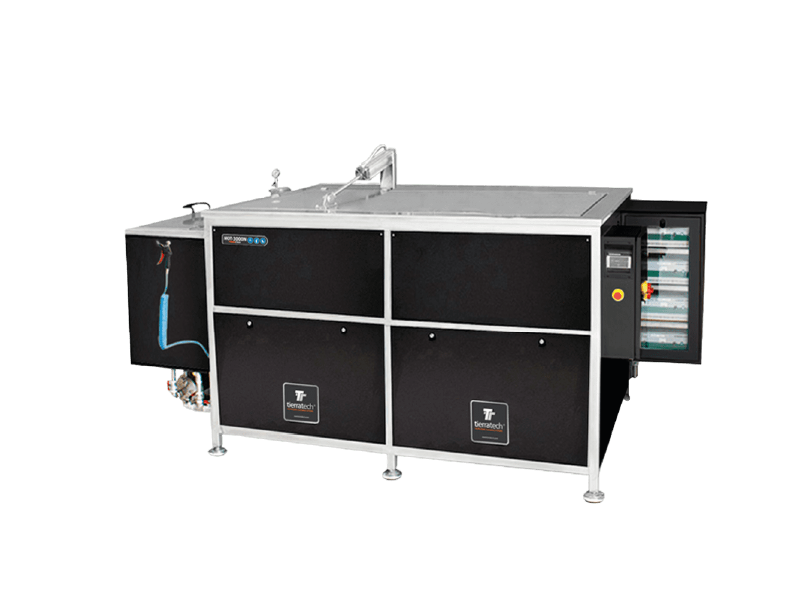

Tierra Tech MOT-4000N Ultrasonic Cleaning Machine 4000 Liter
Tax excluded. Shipping calculated at checkout
The ultrasonic cleaning equipment MOT-4000N is engineered for heavy-duty industrial and automotive cleaning applications.
It features a 2.5 mm thick AISI 304L stainless steel tank, a fingerprint-resistant outer panel, and 20 mm thermo-acoustic insulation to ensure thermal efficiency and noise reduction.
Equipped with 6 ultrasonic generators delivering 20,400 W (40,800 Wp-p) and a reinforced pneumatic platform capable of supporting loads up to 2000 kg, it is ideal for cleaning large and complex components.
Additional features include a 2” drain valve, 1” fill valve, 28,000W heating system, and height-adjustable silentblock legs for stability and ease of use.
The MOT-4000N is the ultimate ultrasonic cleaning solution for professionals seeking maximum power, precision, and reliability in industrial and automotive maintenance.
Ultrasonic Characteristics
- 6 ultrasonic generators with an output power of 20400Wp (40800W p-p)
- 12 submersibles emitters with a power of 1700Wp (3400W p-p) made of 2.5 mm thick stainless steel AISI 316L steel. The emitter contains 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
- Working frequency: 40 KHz sweep system ± 2%
Control Panel
- 4.3” touch screen. Functional and intuitive access to ultrasound time setting, temperature and peripheric or optional systems.
- Programmable weekly calendar
- 6 outputs and 8 inputs temperature module PLC
Finishes and Accessories
- Tank made of 2,5 mm thick stainless steel AISI 304L
- External panel in 1 mm thick fingerprint resistant steel
- 20 mm thick thermo-acoustic insulation
- Reinforced pneumatic platform for loading and unloading up to 2000kg
- 2” drain ball valve and 1” filling valve
- Height-adjustable silentblock legs
- Automatic insulated tank cover in stainless steel operated by a pneumatic cylinder
- Air blow gun for drying the parts
- Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment in perfect condition
- (Optional): Filtration system (stainles steel filter with polypropylene / polyester bag) for waste and mud
