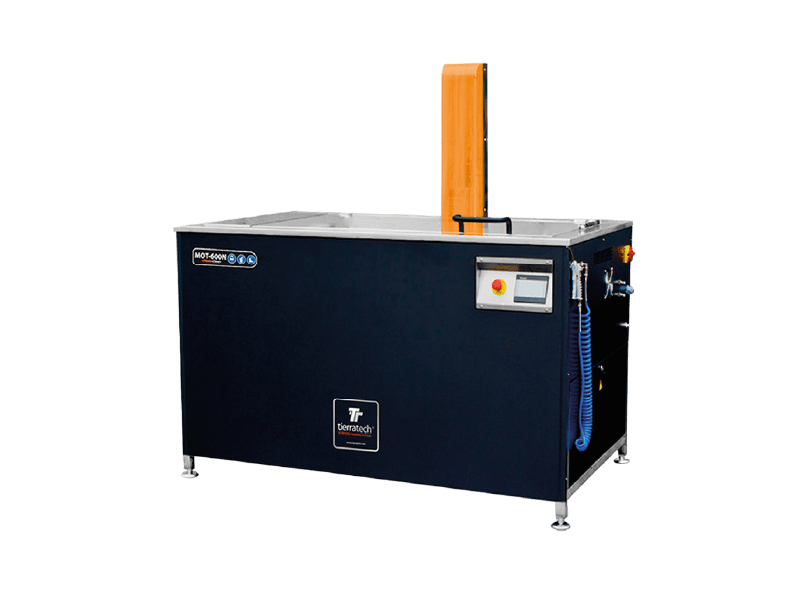

Tierra Tech MOT-600N Ultrasonic Cleaning Equipment 600 Liter

SKU: MOT-600N
Sale price€35.700,00

Tax excluded. Shipping calculated at checkout


The ultrasonic cleaning equipment MOT-600N is specially designed to meet the rigorous cleaning demands of the automotive industry. Operating on a 400V power supply, it features a 9000W heating element and delivers 6000W of ultrasonic power 5100Wp (10200W p-p)for deep, effective cleaning of complex automotive parts.

With 3 submersible emitters with 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body, this system uses a 40 kHz sweep frequency (±2%) to ensure uniform cleaning.

It’s ideal for components like engine parts, injectors, and transmission elements, helping improve performance and extend part life

Ultrasonic Characteristics

  • Ultrasonic power: 5100Wp (10200W p-p)
  • Working frequency: 40 KHz. Frequency (Sweep System ± 2%)
  • 3 submersible emitters with 34 PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body
  • Tank made of 2 mm thick stainless steel AISI 304L
  •  Pneumatic load platform: Up to 350 kg

Control Panel

  • Touch screen (4,3 “), functional and intuitive, with access to selection of time of ultrasonic, temperature, security levels and peripheral systems.
  • Weekly calendar programming to optimize the start-up of the equipment.
  • PLC with temperature module with 8 inputs and 6 outputs.

Finishes and Accessories

  • Tank made of 2 mm thick stainless steel AISI 304L
  • External panel in 1 mm thick fingerprint resistant steel
  • 20 mm thick thermo-acoustic insulation
  • 1½” drain ball valve
  • Height-adjustable silentblock legs
  • Automatic insulated tank cover, in stainless steel, powered by pneumatic cylinder, with retainer, drip gutter and dead man safety system.
  • Air blow gun for drying the parts
  • Integrated waterflow system. Sweeps the waste floating on the surface, keeping the cleaning equipment inperfect condition
