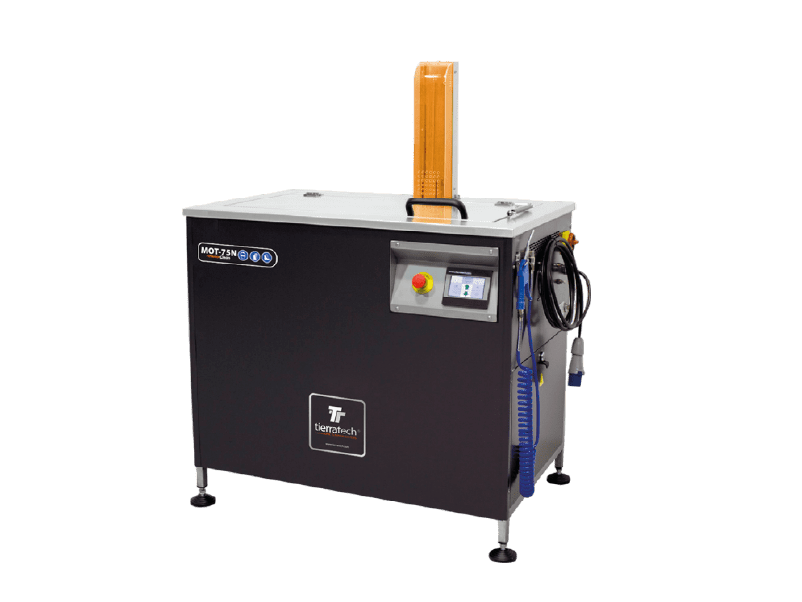

Tierra Tech MOT-75N Ultrasonic Cleaning Equipment 75 Liter

Motor Clean is a range of ultrasonic cleaning equipment and systems specifically designed for automotive professionals.

The ultrasonic cleaning equipment MOT-75N model, with a 75-litre capacity  and a weight of 130 kg, is ideal for maintaining medium and small-sized parts.

It is the perfect choice for degreasing, decarbonising, and descaling engine components, providing high-quality finishes by easily reaching all hard-to-access areas, regardless of the complexity of the parts.

Ultrasonic Characteristics

• Ultrasonic power: 1000Wp (2000W p-p)
• 1 ultrasonic generator with an output power of 1000Wp (2000W p-p)
• 1 submergible emitter with 1000Wp (2000W p-p) of power built in INOX AISI 316 steel, 25,4mm thick. The emitter contains 16 high-performance PZT (lead zirconate titanate) piezo-electric transducers with aluminium alloy body.
• Working frequency: 40 KHz sweep system ± 2%

Control Panel

• Integrated control panel  with 7″ TFT screen.
• Time and temperature control.
• Movement button (up – down – shaking).
• US button (connect – disconnect), direct ultrasonic alarms and selectors.
• Heating button (on – off).
• WFS/Filter button (optional) (on – off).
• START-STOP button (connect – disconnect cycle).
• ON-OFF button (on – off control).
• Capacity to work with 22 programmable cycles, protected by password.
• Temperature control through PT100, over temperature safety and breakage sensor.
• Weekly programmer, for preheating and turning off the machine.

Finishes and Accessories

• Tank built in INOX AISI 304 Stainless steel, 2 mm.
• External panel in fingerprint-resistant steel, 1mm.
• Thermo-acustic isolator K-Flex Duct Net, 20mm inch thick.
• Reinforced pneumatic platform for loading and unloading up to 66 lb.
• 25,4mm draining ball valve.
• Height adjustable legs.
• Insulated tank cover in Stainless-Steel with pneumatic shock absorber
• Air blow-gun for drying parts.
• Integrated wateflow system. Removes the existing waste on the tank surface, keeping the cleaning equipment in perfect condition.
• (Optional): Filtration system (Stailess-Steel filter with polypropylene/polyester bag) for waste and mud.
