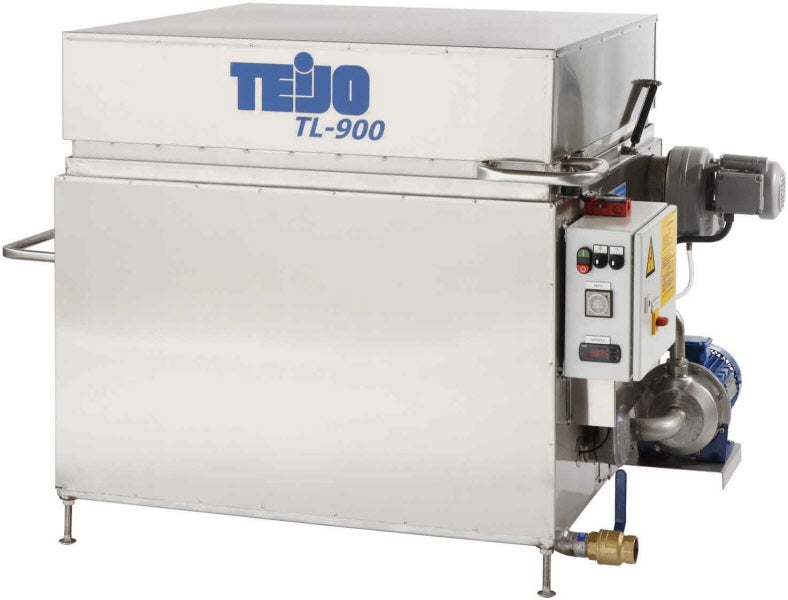

TEIJO Top-loading Cleaning machines
Tax excluded. Shipping calculated at checkout
Top-loading
Cleaning machines
Features and benefits

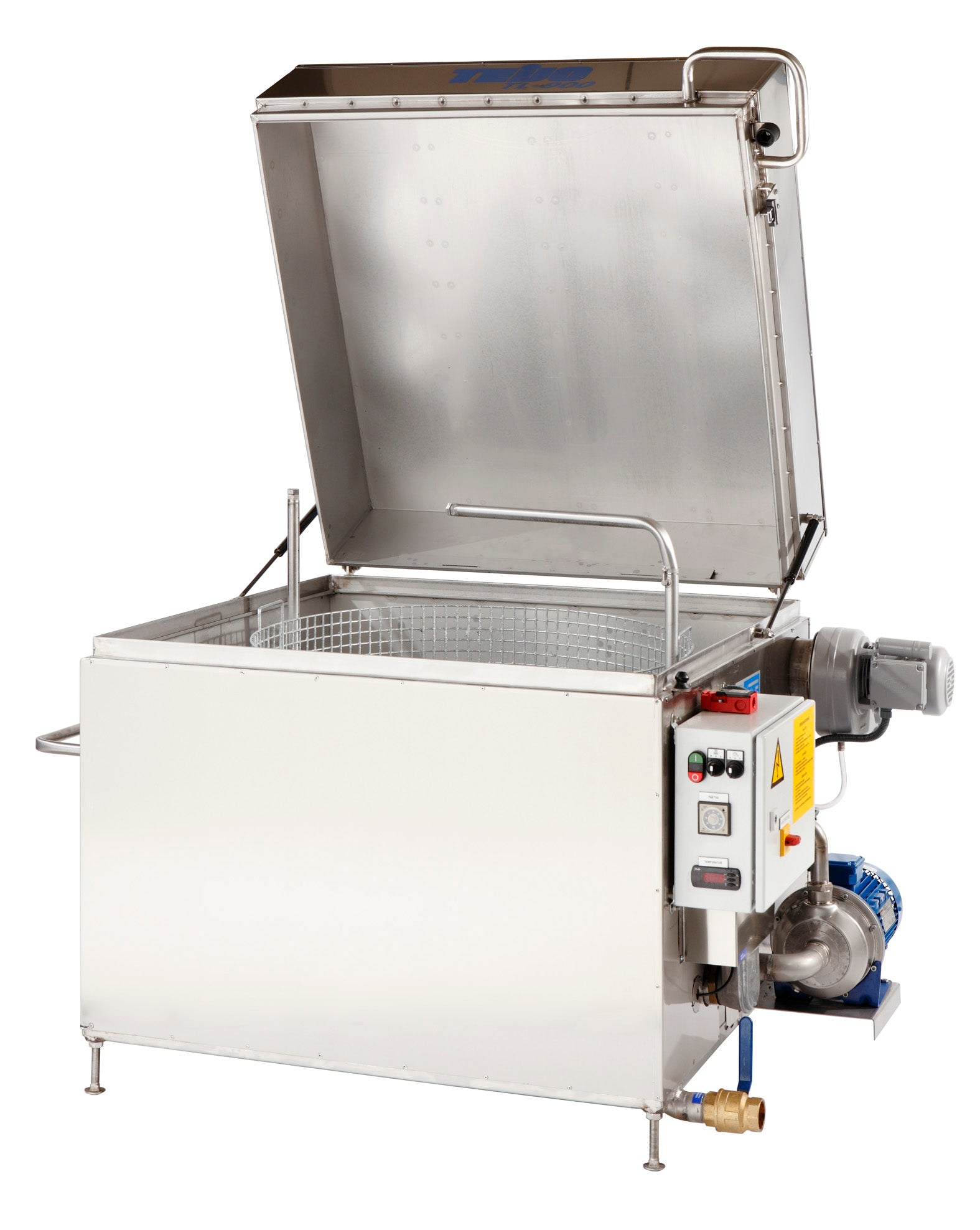

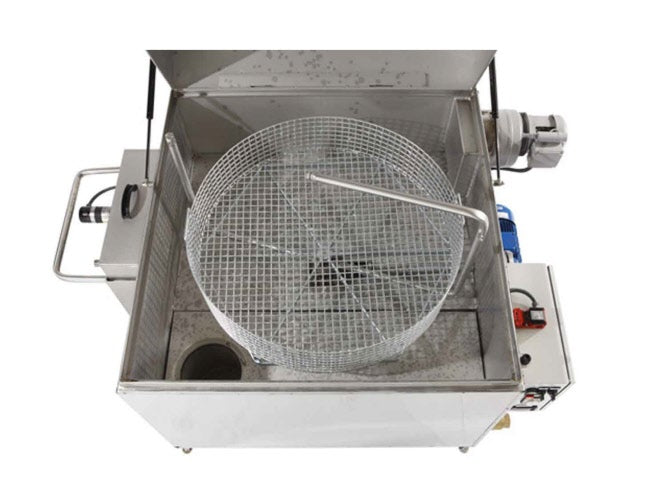

The parts to be cleaned are loaded into the cleaning chamber from the top by means of a loading basket, loading grid or loading table.
This type of cleaning machine is effective and suitable for cleaning small parts.
The operator controls the cleaning process using a timer, thermostat and dedicated switches (e.g., heating, oil skimming) located on the electrical control panel.
The machine is constructed from stainless steel for durability and long-lasting performance.
Selecting a model
The correct cleaning machine model is determined by the dimensions of the component to be cleaned, taking into account its height and diameter or height and cross-section.
The model number indicates the diameter of the spray pipe’s rotation circle (e.g., TL-900SS = Ø 900 mm), which determines the maximum cross-section of the component that can be cleaned.
The maximum component height is 430 mm.
| Standard equipment: | |||
| load table; load basket, load grating; water chamber, shaft; connections, valves; filterbasket 630 µm |
Stainless steel AISI 304 | ||
| OPTIONAL ACCESSORIES | |||
| Accessory prices valid only together with machine purchase | |||

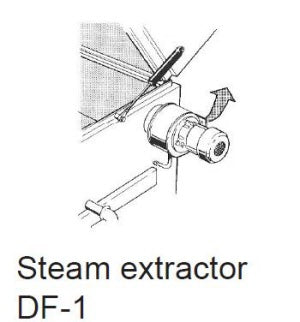

| Steam extractor, cast aluminium | DF-1 | ||
| Adapter for steam extractor, d=100mm | DFO-100 | ||
| Automatic water refill | AR-1 | ||
| Automatic oil skimmer, disc type, AISI | OS-3B | ||
| Manometer for pump | M-1 | ||
| Load basket | LB-65S | ||
| Load basket | LB-90S | ||
| Load grating | LG-12S | ||
| DRY-Unit | TL-DRY-6 | ||
| Load basket mini (250x250x105mm) | LB-MINI | ||
| MAINS | Standard mains 3 x 400V, 50 Hz | ||
| The machines require an electric connection with a zero conductor. | |||
| Special mains optional: | |||
| TL-650SS, TL-900SS, TL-1150SS | 3 x 230 V, 50 Hz | ||
| Other mains and frequencies | |||
