TubeHone
Precision honing of large and heavy components in small to medium batches.

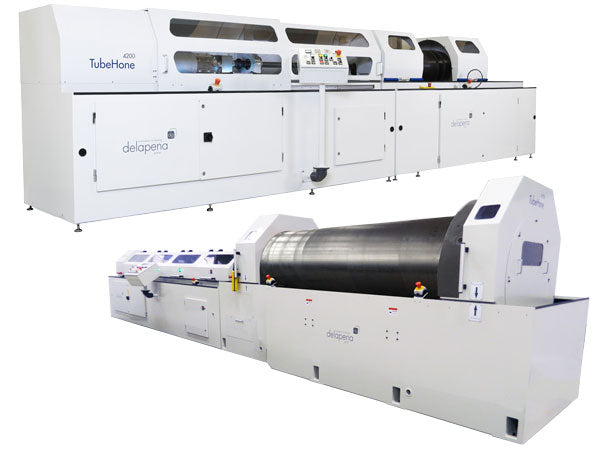

TubeHone is a horizontal machine for honing large and heavy components in small to medium batches. It is also suitable for honing prototypes and offers both through and blind bore honing, with excellent stock removal rates. This machine has been designed for durability, efficiency and economical honing.
For B2B customers, please register here for EU VAT exemption.
TubeHone
Sale price€0,00
CHARACTERISTICS
Ideal for:
- Cylinder liners
- Pump bodies
- Hydraulic cylinders
- Large valve bodies
- Compressor bodies
Customised tooling and handmade abrasives are offered by Delapena to further expend the flexibility of this machine.
Operational Efficiency: Reduced cost per part
Versatile and Flexible: Wide ranging application and capability
Lifetime Value: Durable and economical for maximum return
MACHINEPARTS
Capacity and Stroke
- Diameter range Up to 650mm standard - Up to 1000mm on request
- Maximum stroke length 4000mm.
- Stroking motor speed 0 - 25 metres/minute (infinetely adjustable)
- Stroking motor power 3.0 kW geared motor driving carriage via duplex chains
- Spindle speed 0 - 250 rev/min (infinitely adjustable)
- Spindle motor power 4 kW
- Standard Delapena automatic friction feed system
- Internal Fluid System 280 litres tank with integral weirs and inline cartridge filter
- Fluid Pump 1.6kW
- Conformity CE approved. Conforms to BS EN 6024 and BS7671
- Motor protection category IP54
- Standard electrical supply 380 – 420V,3 Phase, 50Hz
- Control voltage 24VDC
- Net Subject to application
- Gross Subject to application
- Dimensions Subject to application
- Dimensions Subject to application
