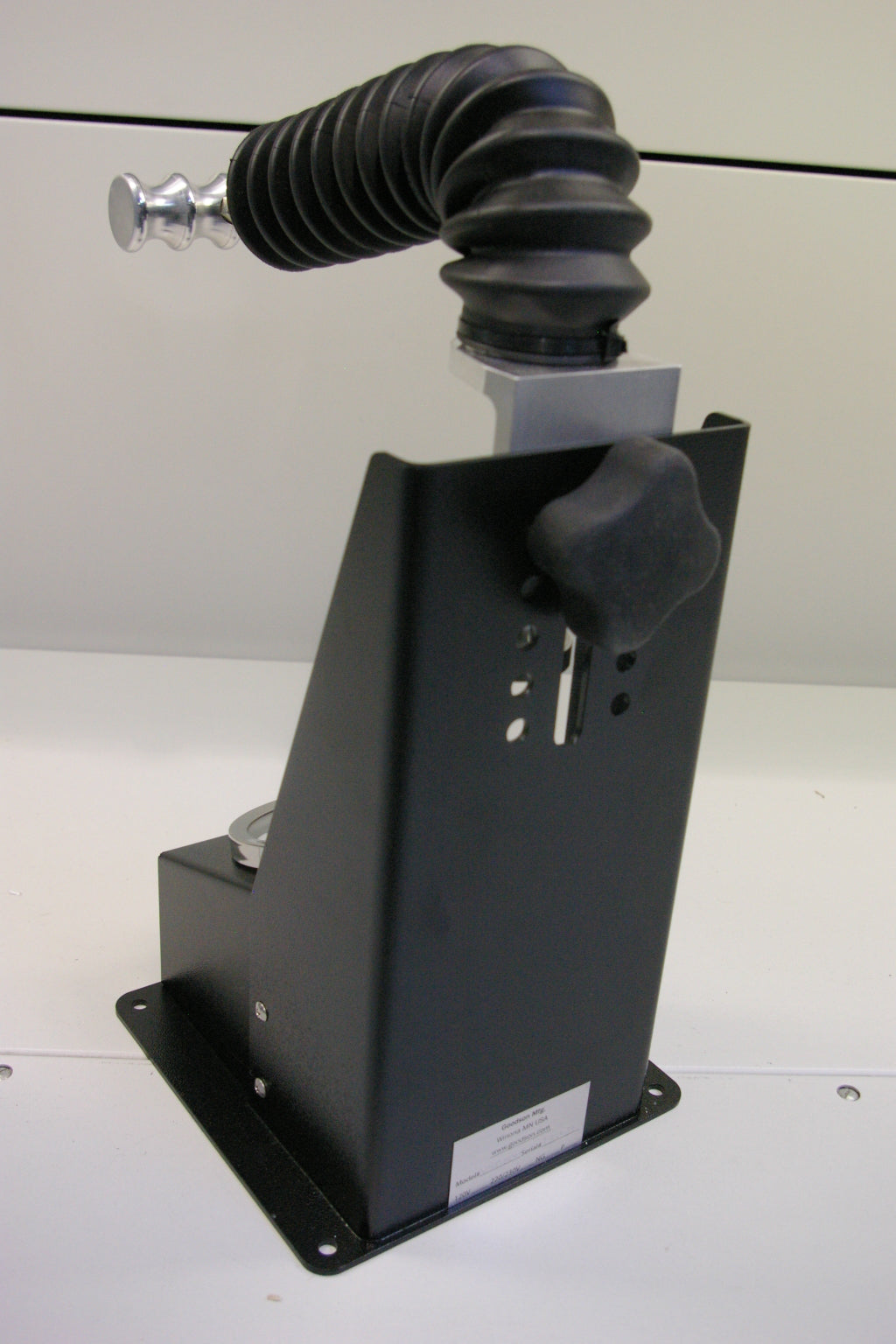

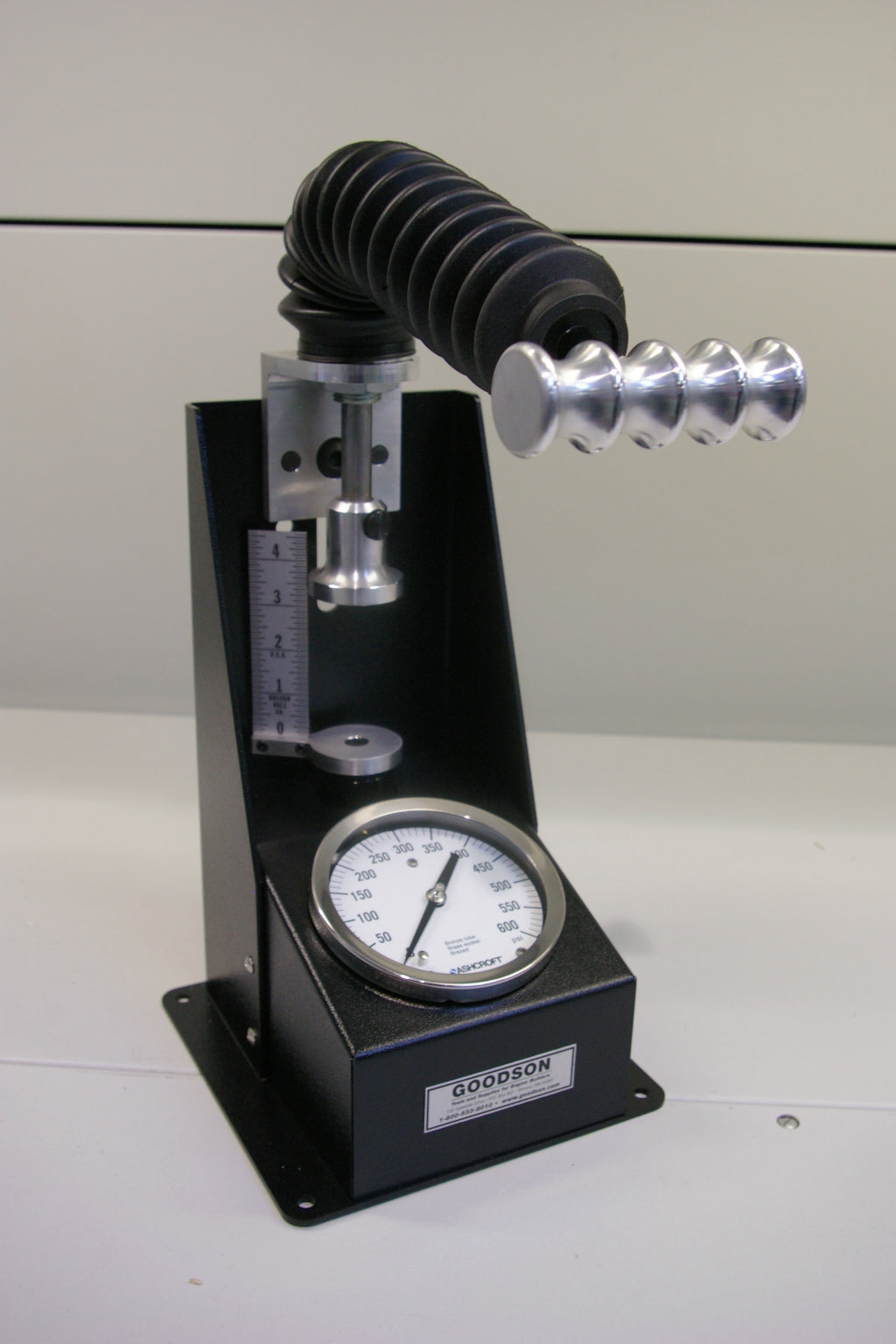

Valve Spring Tester 0-500lbs

►600 pound capacity in 10 pound increments

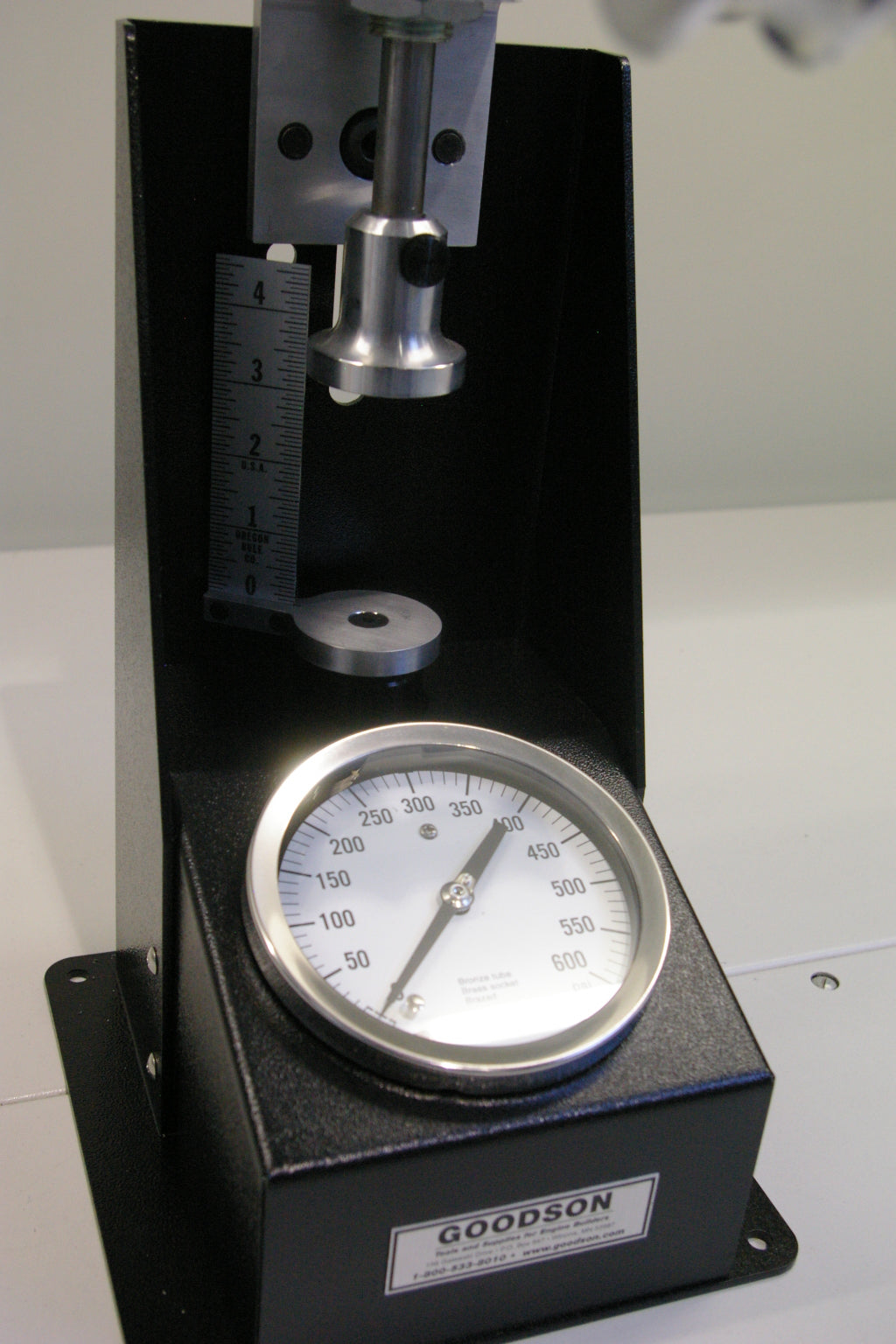

►5" diameter Ashcroft quality analog pressure gauge
►Integral vertical height scale that moves 180° left to right to accommodate right or left hand operation
►Spring platform that handles springs up to 2" diameter x 4.5" overall height
►Vertical height adjustment in 1/2" increments
►Adjustable pressing anvil for fine-tuning open and closed pressures for height measurement
►T-Handle conforms to the operator's grip for firm control
►Heavy duty powder coated texture finish
►Sealed hydraulic load cell
►Over-center cam action that holds spring at the desired height
►Rubber protective boot to keep the mechanism debris-free

►UNIT WEIGHT: 19-1/2 lbs.
►FOOTPRINT: 8-1/2" Square Base
►HEIGHT: 28" Overall Height with handle fully extended

►Base features 4 5/16" mounting holes
