COMEC ACF200-CNC cylinder boring- and surfacing machine
Tax excluded. Shipping calculated at checkout

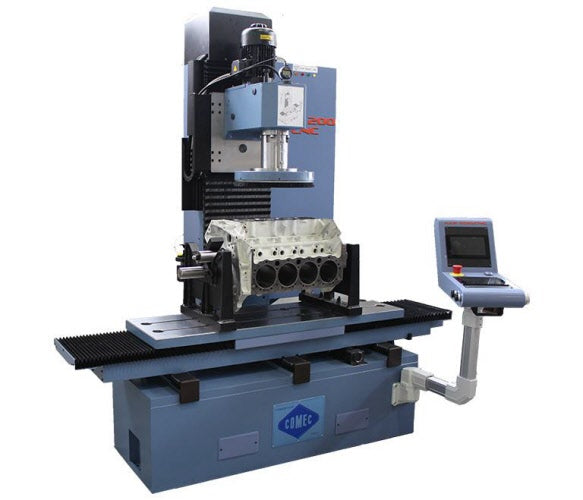

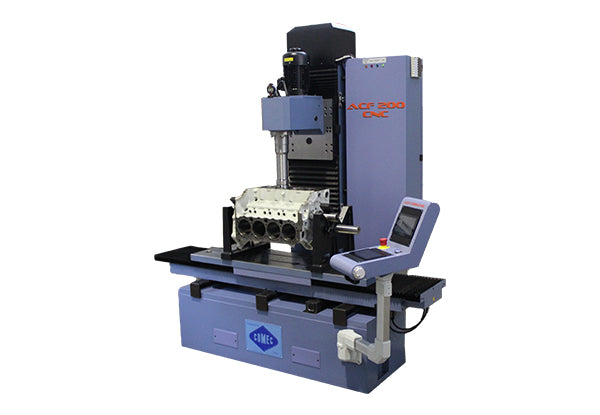

COMEC ACF200.CNC boring machine combines the two main operations of reconditioning the monoblocks of cars and trucks, such as boring and smoothing, in a single machine and now completely automatically thanks to CNC control.
The finest finishing and precision qualities that characterize it are the result of a combination of a proven mechanical design and the introduction of highly innovative technology solutions that make it smart even faster and more practical to use.
Images may show the product equipped with optional accessories
Standard equipment

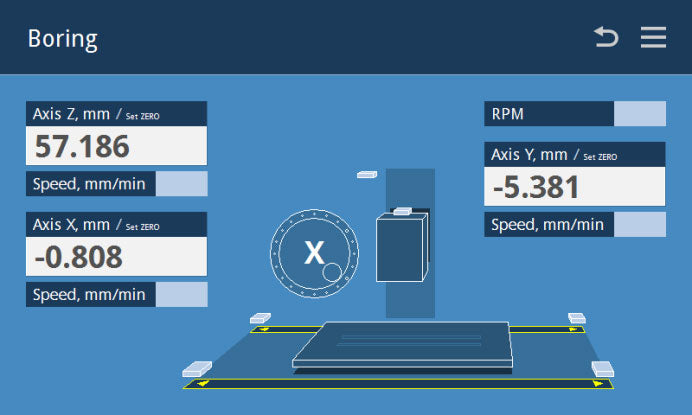

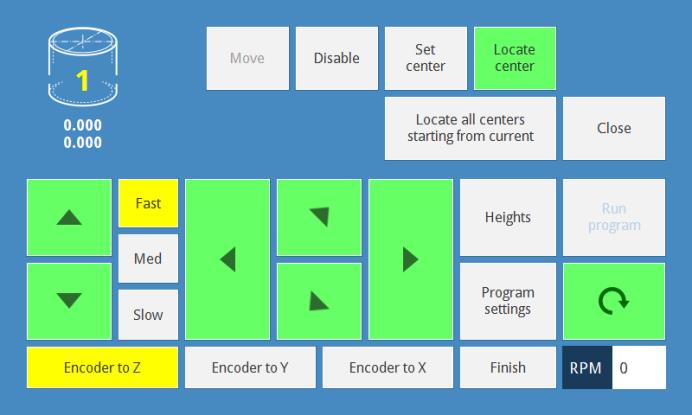

- Computer Numerical Control using LINUX Operating System and ARMv8 CPU Processor
- Precision Ball screw drives on 3 Axis
- Movements by linear railways on 3 Axis
- Brushless motors on 3 axis controlled by CNC

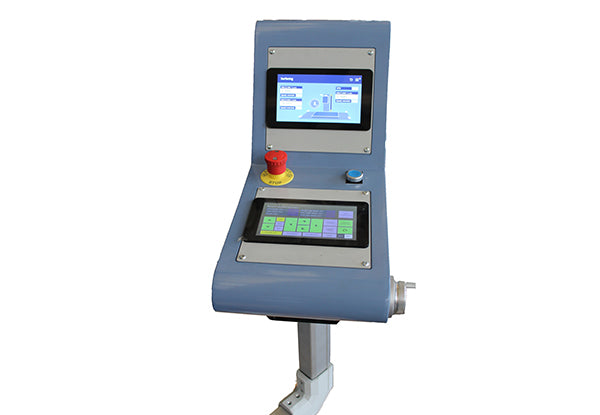

- Swing arm control panel with double touch screens
- Electronic Handwheel for manual displacement on 3 Axis (Fast-Medium-Fine speeds)
- Full automatic and programmable working modes for boring and milling operations
- WI-FI and LAN connections for support and service

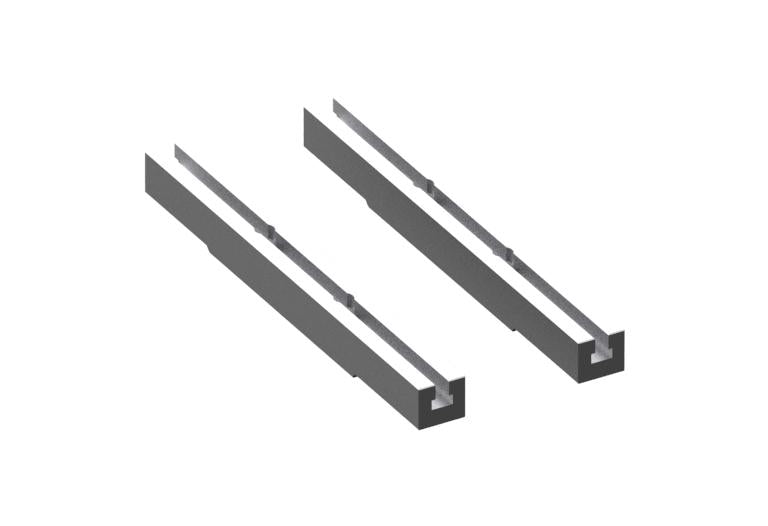

- PV0160 pair of parallel supports
- PV0021 large clamps (2 pcs.)
- PV0022 small clamps (4 pcs.)
- Wrench set
- Instruction manual
