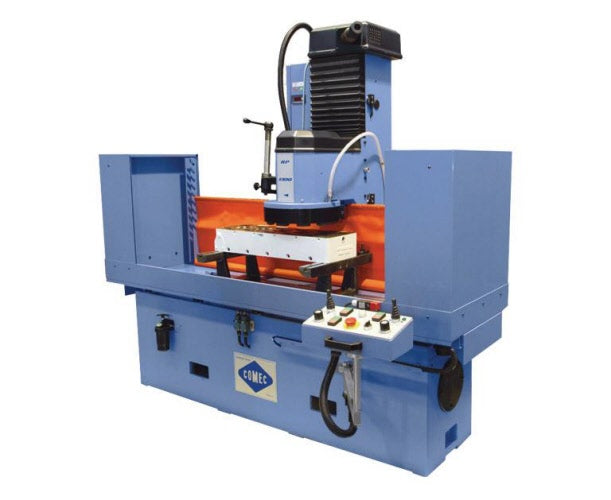

COMEC RP1300 cylinder head and block resurfacer

The RP1300 is a resurfacing machine for cylinder heads and blocks of cars and trucks, as well as for all flat surfaces requiring a high level of surface finishing and accuracy. The technology and design adopted on the RP1300 combine tested solutions, such as the flat and V-shaped lubricated slides on the base to grant an excellent run fluidity, with other innovative features, like the tabele feed through a recirculating-ball screw with adjustable speed feed and the inverter for spindle speed regulation or the automatic cycle for milling operations. The RP1300 is supplied with segment-holding plate for the grinding of cast iron or aluminium cylinder heads with pre-chambers and with an aluminium resurfacing tool. Other accessories are available on demand, such as the milling cutter plate with eight inserts or the CBN-PCD tool-holder for high speed resurfacing of cast iron and aluminium respectively.

Images may show the product equipped with optional accessories

Standard equipment

Adjustable table speed with recirculating-ball screw

Segmented grinding wheel complete with abrasive sectors for cast iron (10 pcs.)

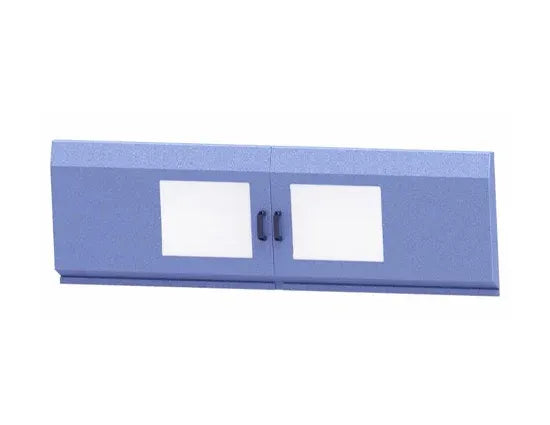

Splash and safety guard

Fast motorized head feed

Cooling system complete with pump

Settling tank

Abrasive sector dresser

RTV099 Starwheel dresser

UT0003 Head resurfacing tool

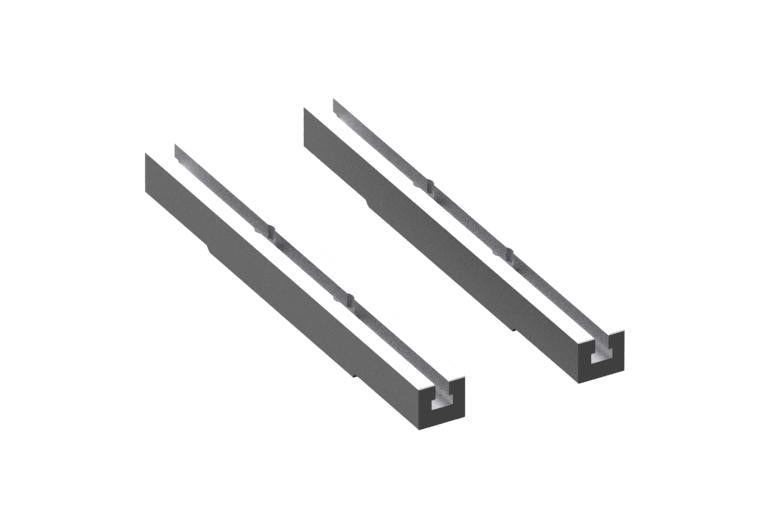

PV0160 Pair of parallel supports

PV0021 Large clamps (2 pcs.)

PV0022 Small clamps (4 pcs.)

Lubricant for slides

Emulsifiable liquid

Wrench set

Instruction manual
