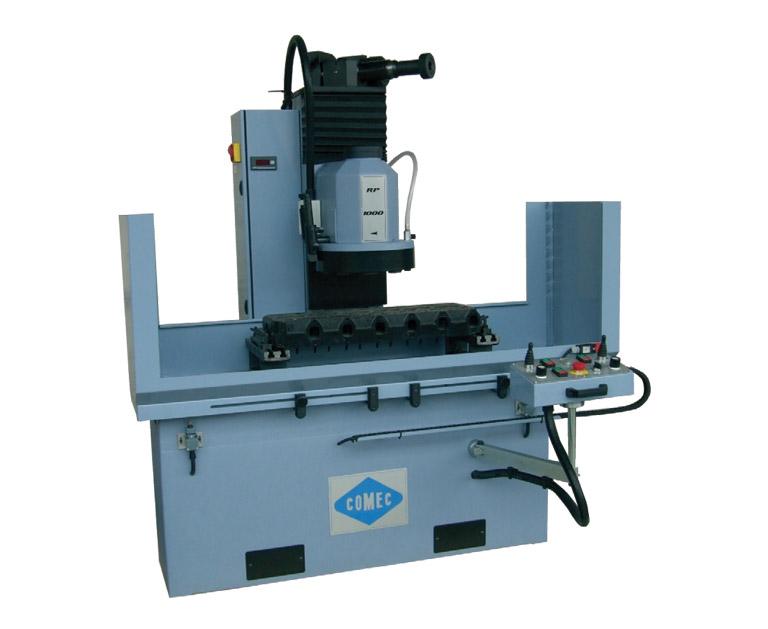

COMEC RP1000 Cylinder Head and Block Resurfacer

SKU: RP1000
Sale price€19.350,00

Tax excluded. Shipping calculated at checkout


The RP1000 is a resurfacing machine for cylinder heads and blocks of cars and trucks, as well as for all flat surfaces requiring a finished and accurate mating surface.
All machine parts, like the base, the table, the column and the head are made of widely ribbed cast iron of the best quality, thereby offering highly rigid and sturdy features.
The table feed is operated through a recirculating-ball screw that is extremely precise even at slow feed speeds. A frequency inverter controlling the screw is attached to the motoreducer to offer different speed feed that can be widely adjusted with a potentiometer.

Another inverter adjusts the spindle speed, in order to get the ideal cutting speed at all times and according to the different cutting systems, like abrasive sectors for the grinding of cast iron or aluminium cylinder heads with pre-chambers, the tool for aluminium resurfacing or the CBN-PCD toolholder plate for high-speed resurfacing.
A conveniently located digital display shows the rotation speed.
For an easy and safe use of the machine, all control commands are located on a rotating control panel that can be adjusted to every operator. Moreover, in order to supply an efficient product, the machine's standard equipment includes the rapid movement of the head, an efficient cooling system complete with a settling tank, and a wheel dressing assembly with diamond dresser.
Useful accessories are also available upon request, such as the adjustable set-up  fixture for cylinder heads, the V-block mounting kit, the rotating backing pad for the grinding of flywheels, clutch friction plates or brake discs.

Technical Specifications (Comec RP1000)

Table travel (X-axis): 1,000 mm

Maximum workpiece length: 895 mm

Maximum workpiece width: 355 mm

Workpiece height (min–max): 125–545 mm

Useful table surface: 920 × 210 mm

Grinding wheel diameter: 355 mm (14″)

Variable spindle speed: 300–1,500 rpm

Variable table feed speed: 0–1,500 mm/min

Main spindle motor: 4.0 kW (2.2 kW on M version)

Table motor: 0.55 kW (some sources state 0.75 kW)

Rapid head feed motor: 0.18 kW

Coolant pump motor: 0.10 kW

Dimensions (L×W×H): approx. 1,680 × 1,140 × 1,850 mm

Weight: approx. 1,015 kg



Standard equipmentVariable spindle speed with digital readout

Variable table feed via precision ball screw

Motorized rapid vertical head movement

Manual, continuous, and automatic working modes

Swiveling operator control panel

Transparent polycarbonate safety guard

Pair of parallel supports with clamping devices

Slideway lubrication system

Coolant system with pump and tank

Diamond grinding wheel dresser

355 mm grinding wheel with segments (for grinding version) or CBN/PCD tool holder (for milling version)

Key Features

Heavy-duty cast iron base, column, head, and table ensure maximum rigidity

Frequency inverters for precise control of spindle and feed speeds

Designed for high-precision resurfacing of engine blocks, cylinder heads, flywheels, brake discs, and more

Suitable for cast iron (with grinding segments or CBN) and aluminum (with PCD tooling)

Optional fixtures available for V-type engines, rotary components, and more



Buy it with

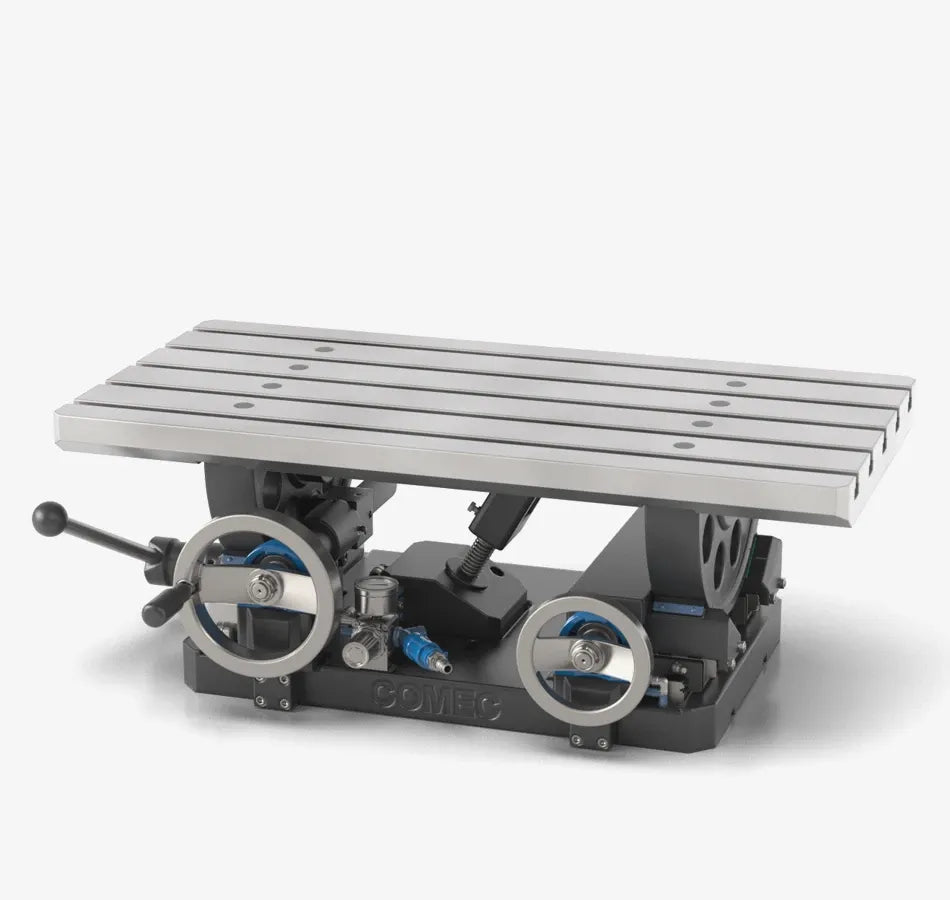

COMEC Adjustable Universal Fixture
COMEC V-Block mounting kit
COMEC V-Block mounting kit Sale price€560,00
Comec Pair of fast clamping column

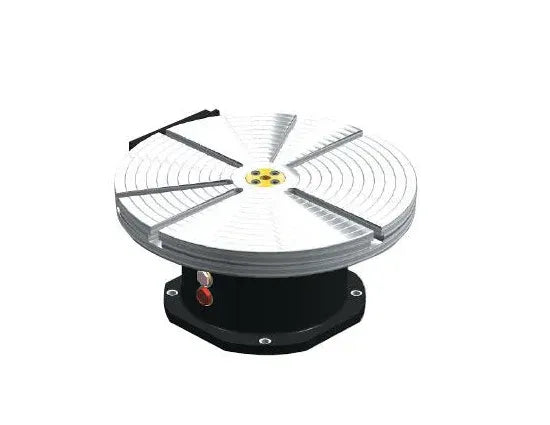

COMEC Motor driven Rotary table
